BOÝLER-HOT WATER SYSTEMS TANK
Download
E-Catalog!

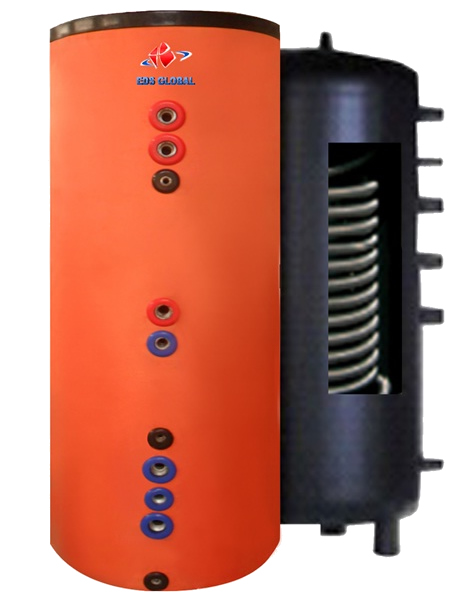

EDS ENERGY-SAVING
HOT WATER SYSTEM TANKS
Application : Storage Tank For Hot Water
Tank Body Material : Carbon Steel
Inside Treatment : Rust Proof and Varnish Coat
Working Pressure : 4 bar
Working Temparature : 95 C
Clean Water Heat Exchanger Material : 316 L
Working Pressure : 12 Bar
Working Temparature : 95 C
Guarantee : 3 Years
Insulation : Soft PU - PVC or ABS Jacket - 100mm

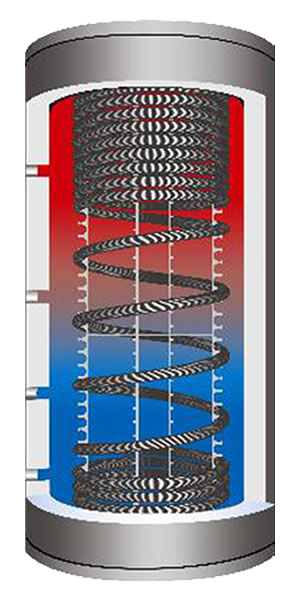

Version : Width 1 Pipe Serpantine
And With Flange Cover On Top
TECHNICAL DETAILS;
  • High hygienic standarts for clean water thanks to AISI 316 L stainless steel flex hose
  • Additional solar system serpentine for energy saving
  • Housing for electrical heater
  • 100 mm PU Isolation from outside
  • Coloured zipper polyester-based outside cover
  • Coloured zipper PVC or ABS outside cover
  • Changeable stainless steel flex cover thans to flange cover on top the tank
  • No need anode bar
  • More then one spare connection housings for serial connection of hot water tanks or special other purposes

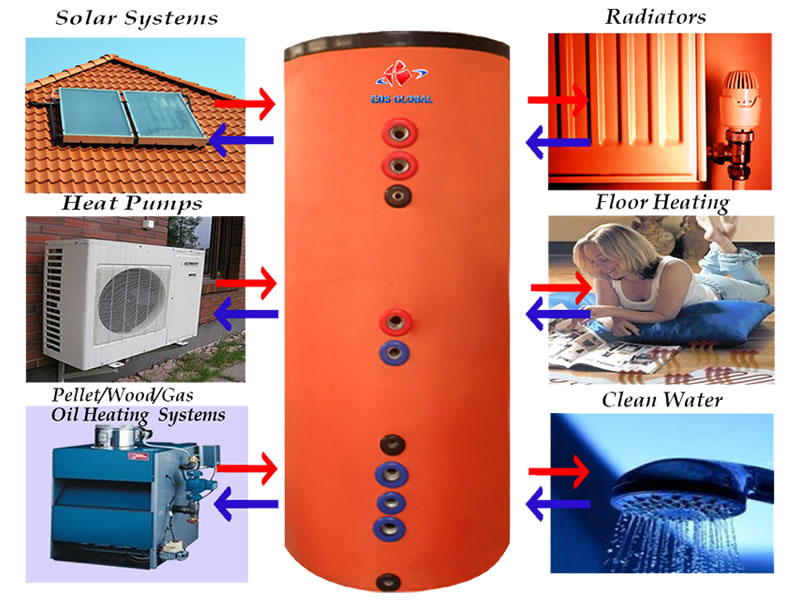

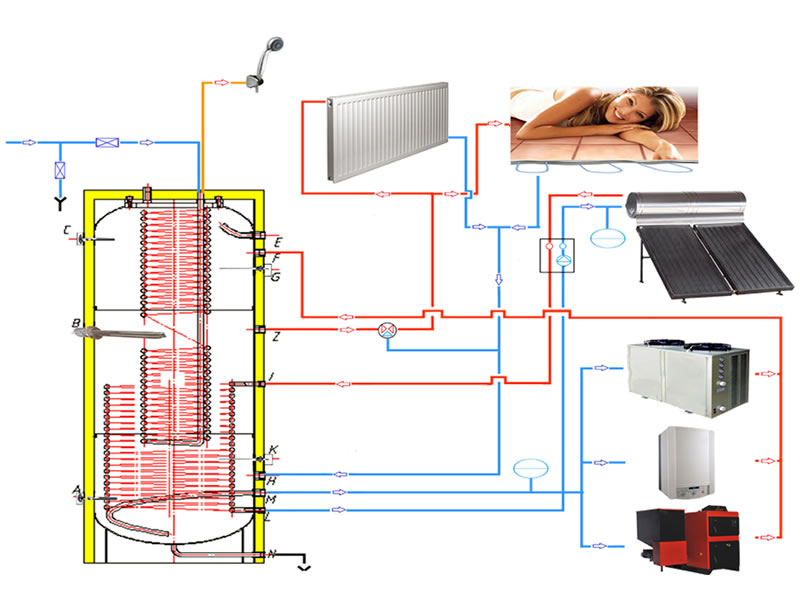

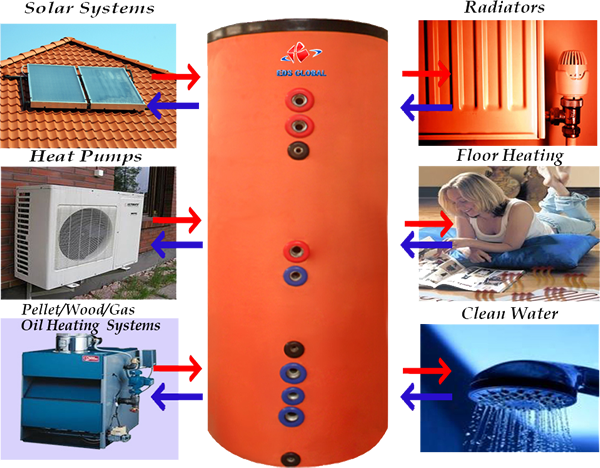

  • Can be used with all natural gas-wood-pellet-oil heaitng systems, heating pumps and electrical heaters.

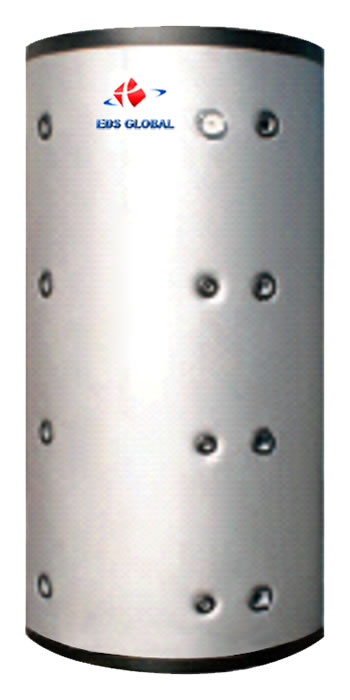

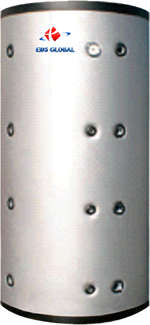

BUFFER TANK-B
BUFFER TANK-B
Click For Product Type
HYGIENIC BOILER TANK-H
HYGIENIC BOILER TANK-H
Click For Product Type
BUFFER TANK WITH SERPANTINE FOR SOLAR SYSTEM-BS
BUFFER TANK WITH SERPANTINE FOR SOLAR SYSTEM-BS
Click For Product Type
HYGIENIC BOILER TANK WITH SERPANTE FOR SOLAR SYSTEM-HS
HYGIENIC BOILER TANK WITH SERPANTE FOR SOLAR SYSTEM-HS
Click For Product Type
TECHNICAL DETAIL TABLES

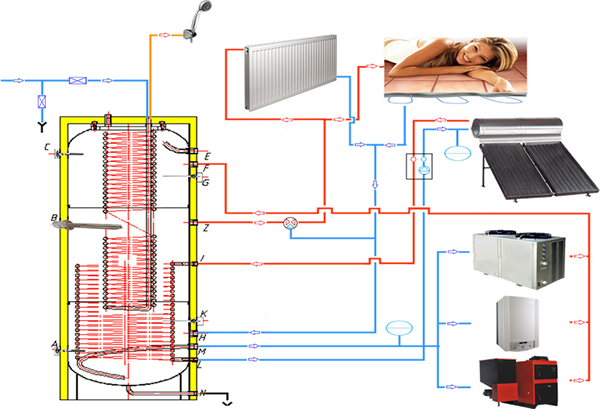

CONNECTIONS
LEGEND CONNECTIONS
MODEL DIMENSIONS

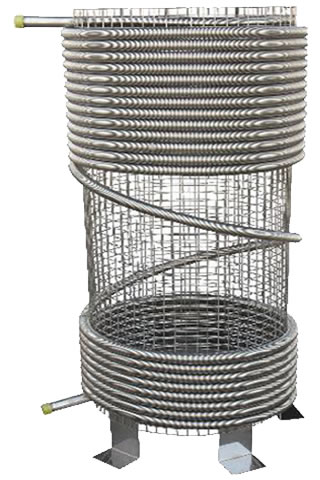

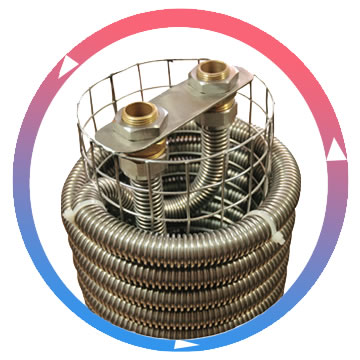

EDS HOT WATER TANK/BOILER FLEX-AISI 316L
  • Surface area is double in comparison the some lenght of rigid pipe
  • Thin wall thickness for faster heat transfer
  • No strain due to self cleaning
  • Due to elastic stucture anti-lime design
  • Easy to bend
  • Corrosion resistant
  • Acid resistant
